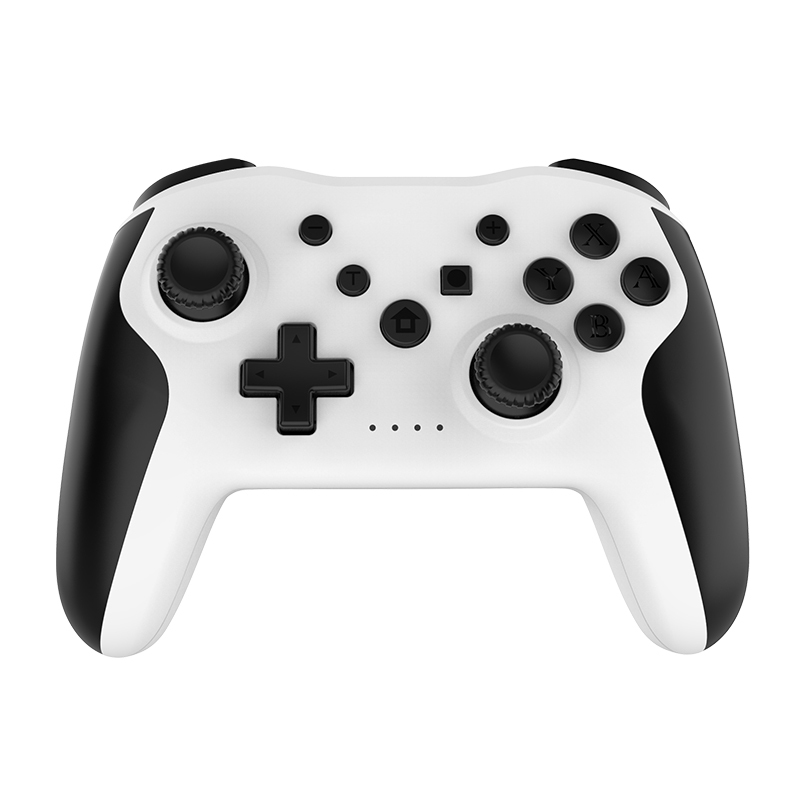

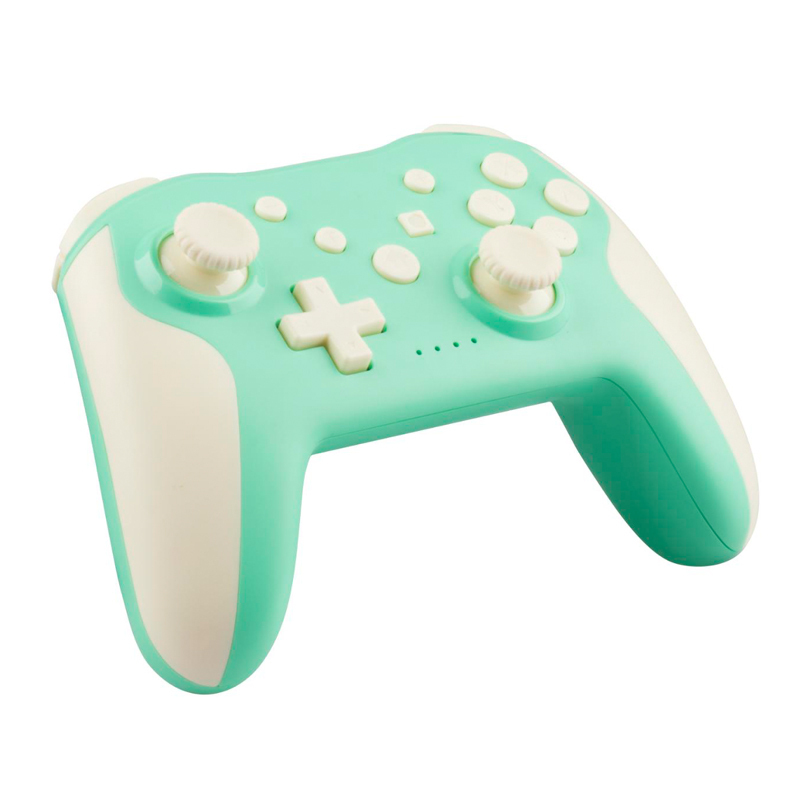

NS009 6-Axis Vibration Burst Wireless Bluetooth Gamepad: Ultimate Cross-Platform Control

Overview

The NS009 6-Axis Vibration Burst Wireless Bluetooth Gamepad redefines gaming versatility with its multi (Nintendo Switch™, PS3™, PC, and Android) and advanced motion control technology. Engineered for precision and comfort, this controller integrates six-axis gyroscopic sensing , customizable turbo functions , and HD vibration feedback to elevate your gaming experience across all supported platforms.

Technical Specifications

• Dimensions : 152mm (L) × 109mm (W) × 61mm (H)
• Battery : 600mAh Li-ion (>10 hours continuous use; 50-day standby)
• full charge; DC5V/500mA input)
• Connectivity : Bluetooth 4.0 (8m range) / Wired Type-C/USB
• Input Modes : X-INPUT (default for PC) / □-INPUT (switchable via -/+ buttons)
• Compliance : FCC-certified (ID: YLW NS009)

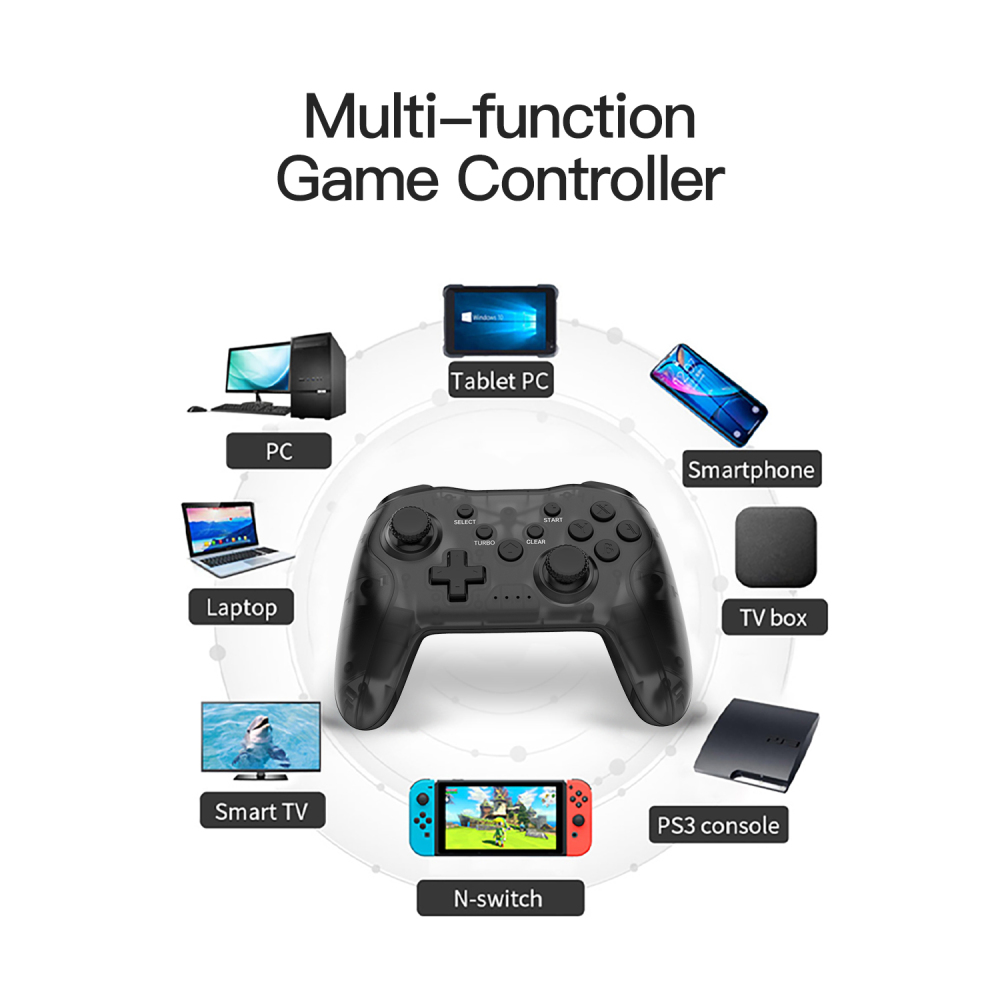

Compatibility & Connectivity

Wireless Pairing

• Nintendo Switch™ :

1. Navigate to Controllers → Change Grip/Order on the console.
2. Hold **HOME** for 3s (LED marquee flashing = pairing mode).
3. Auto-connect on subsequent use via single HOME press.

• Android :

1. Hold A + HOME for 3s (LED2/LED3 rapid flash).
2. Select "Gamepad" in device Bluetooth settings.

Wired Setup

• PC : Connect via USB (LED1/LED4 lit = X-INPUT mode).
• PS3™ : Hold - button while plugging into USB.
• **Switch-connection).

Key Features

1. Turbo Customization

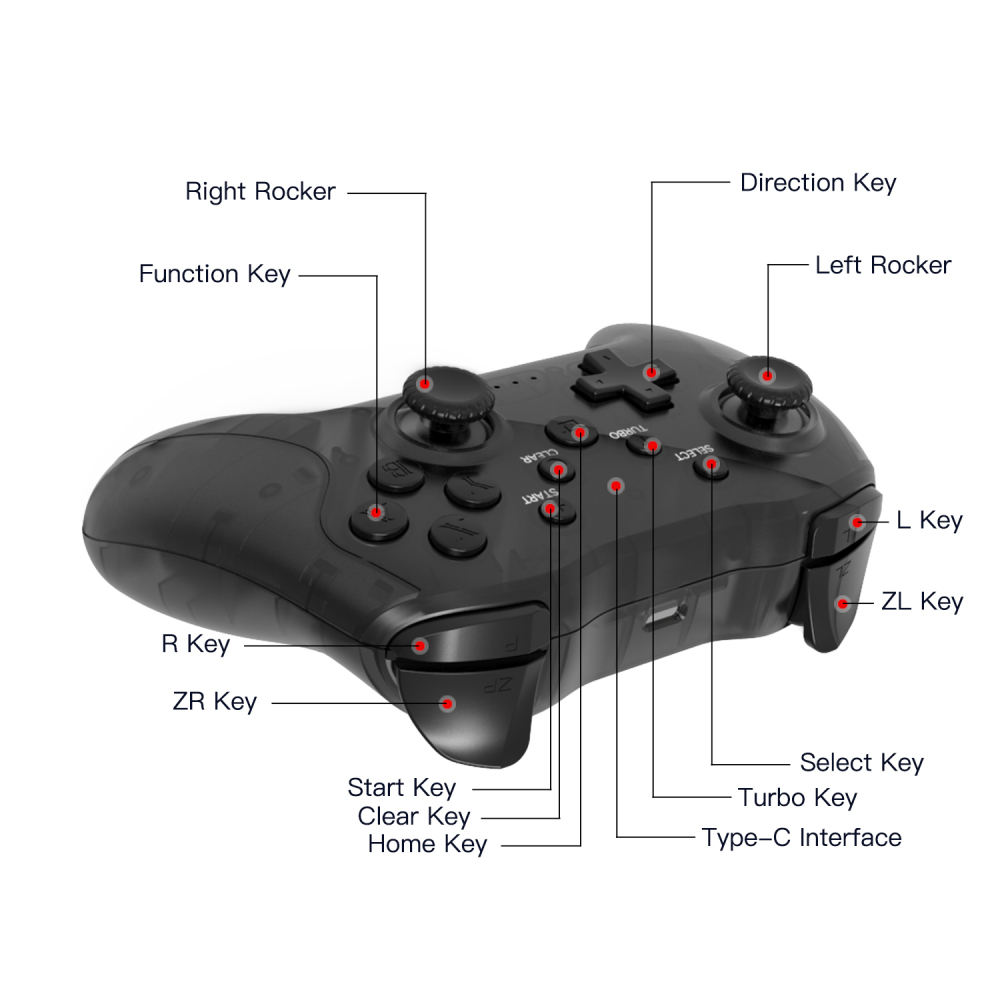

Programmable turbo for 8 action keys (A/B/X/Y/L/ZL/R/ZR):

• Activation : Long-press target key → tap TURBO.
• Reset Required : Clears after power cycle/dormancy.

2. Motion Precision

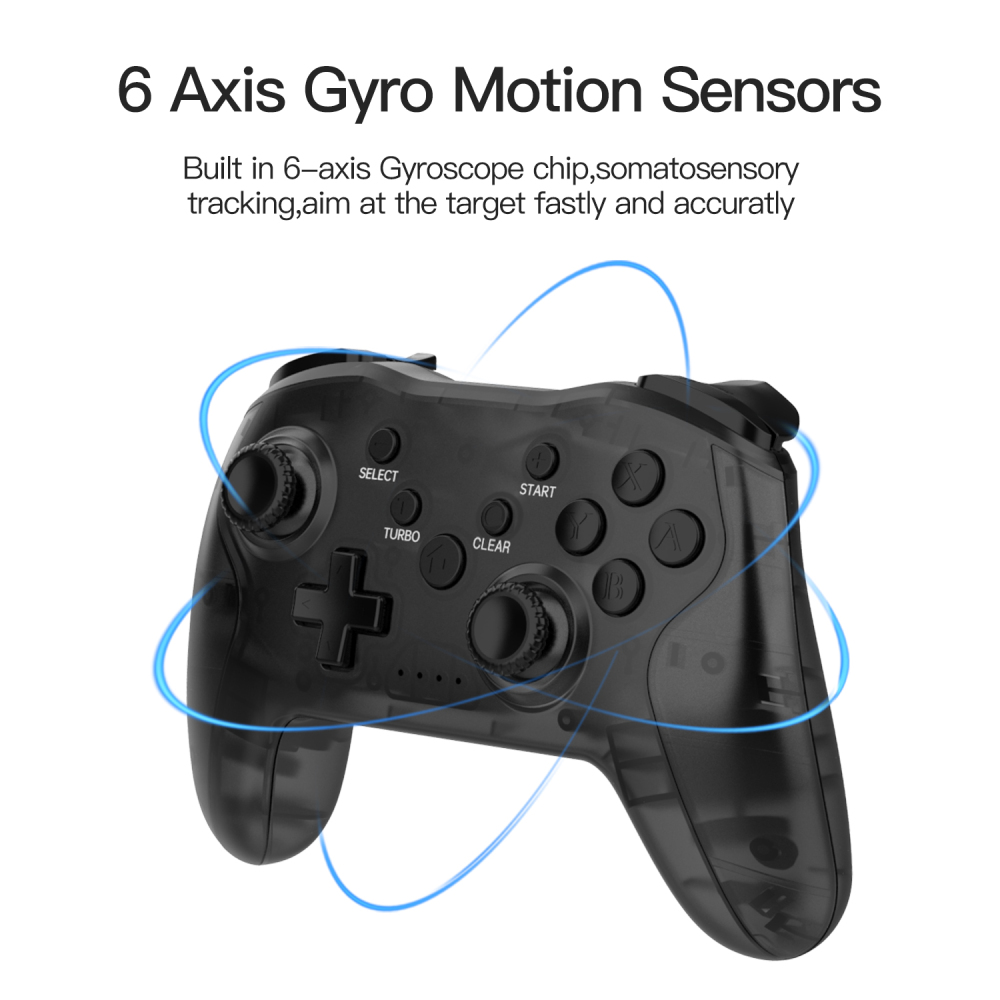

• Six-axis gyroscope enables tilt/rotation controls ( Switch™ motion games optimized ).
• Calibration Protocol :
• Post-disconnect, press - + B + HOME → alternate LED flash → press + to reset.

3. Intuitive Feedback

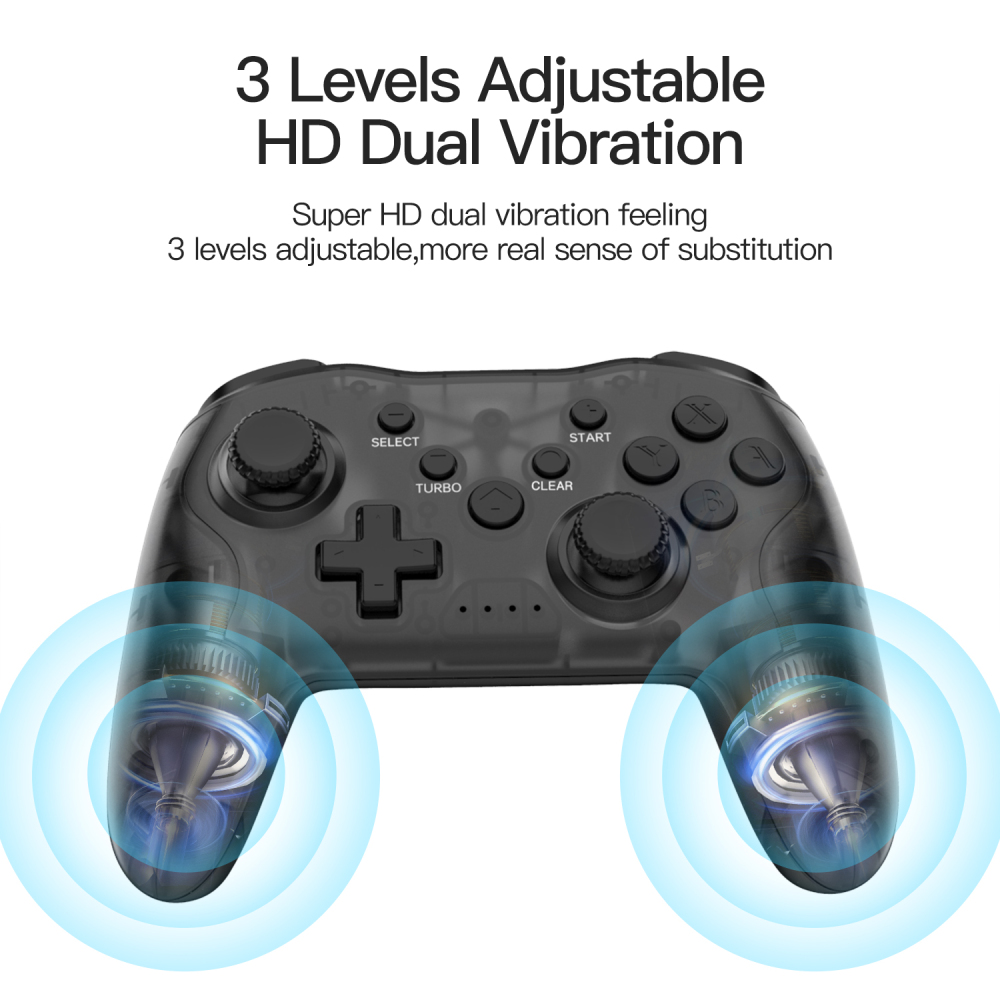

• HD vibration modules enhance immersion (adjustable via game settings).
• Battery Alerts :
• Low charge: Rapid LED flash.
• Charging: Slow pulse → steady light (full charge).

Usage Guide

Power Management

• Shutdown : Hold HOME for 5s (all LEDs off).
• Wake-Up : 1s HOME press (auto-reconnect to last device).

Mode Switching (PC)

• Hold - + for 5s to toggle between X-INPUT (LED1/LED4) and □-INPUT (LED2/LED3).

Safety & Compliance

• FCC Notice : Operates within FCC guidelines; avoid modifications to prevent interference.
• Charging Advisory : Use provided Type-C cable (80cm length) for optimal charging efficiency.

Why Choose NS009?

• Cross-Platform Mastery : Seamlessly transition between Switch™, PS3™omic Design**: Contoured grips for extended play sessions.
• Smart LED Indicators : Real-time status updates for connectivity/power.

Upgrade your arsenal with the NS009—where precision meets adaptability.

Note: Turbo settings require reactivation post-reboot. Ensure firmware updates via manufacturer guidelines.
